Variable Refrigerant Flow Systems

DC INVERTER HIGH EFFICIENCY STANDARD AMBIENT VRF SYSTEMS

The YORK® line of VRF Air Conditioning System includes a wide range of sizes to meet most any customer’s needs. Each model is designed to provide comfort and efficiency, in an easy-to- operate unit and flexible installation makes them an easy fit for a variety of applications. Models meet the highest energy efficiency ratings, so less energy is consumed without sacrificing comfort and performance. Each unit is engineered for quiet operation. And, wired or wireless remote controllers make changing comfort control settings easy with the touch of a button.

We create environments that help achieve a higher level of comfort.

No one knows building environments better than Johnson Controls. For more than 125 years, we’ve been in the business of building efficiency, delivering healthier environments, operational savings and sustainable solutions for our partners all over the world. In fact, we serve over one million customers and help the world reduce its energy consumption, saving customers over $7.5 billion in energy costs.

  • Broad compressor capacity operation range (10% - 100%)
  • DC Inverter Scroll Technology
  • Cooling from -5°C to +43°C DB (out- door temperature)
  • Heating from -15°C to +15.5°C WB (outdoor temperature)
  • High performance - EER up to 4.29
  • Green refrigerant R-410A
  • Flexible and quick installation
  • Smaller footprint
  • Versatile indoor units
  • Connection of up to 64 indoor units per refrigeration circuit consisting of 3 outdoor units
  • Quiet operation
VRF

MODULAR VRF OUTDOOR UNIT 380V

Cooling Capacity 25.4 - 211.2 kW

Heating Capacity 28.1 - 211.7 kW

  • High performance - EER up to 4.29
  • Frequency 50/60Hz
  • Top discharge
  • Smaller footprint
  • Match with versatile indoor units
  • Flexible and quick installation
  • Quiet operation
  • 9 Basic Modular units: 8HP, 10HP, 12HP, 14HP, 16HP,18HP,20HP,22HP,24HP
  • Connection of up to 64 indoor units per refrigeration circuit consisting of 3 outdoor units
VRF

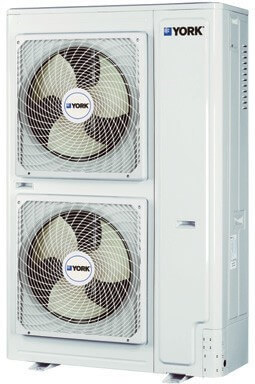

MINI-VRF OUTDOOR UNIT

Cooling Capacity 8.6 – 33.8 kW

  • Dual Frequency 50/60Hz
  • Side discharge
  • Smaller footprint
  • Available sizes: 3HP, 5HP, 7HP, 8HP, 10HP,12HP

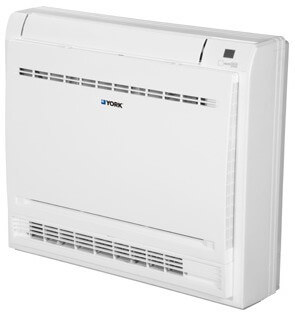

VRF console

CONSOLE

Cooling Capacity 1.5 – 5 kW

  • Compact Design & Small Space Occupation
  • Quite Operation
  • Air Discharge through Top(Cooling) or Bottom(Heating)
  • 6 Models Ranging from 1.5KW to 5.0KW
  • Standard wired controller, Optional wireless controller
  • 2-way air outlet
  • Emergency operation
  • Quiet operation
  • High efficiency filter
  • Flexible
  • Easy installation
  • Compact unit , space saving

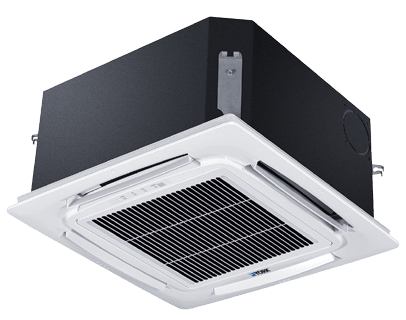

MINI CASSETTE

MINI CASSETTE

Cooling Capacity 1.5 – 5.6 kW

  • Compact design: installation restriction is reduced to enable high flexibility
  • Body size 570*570mm, panel size 620*620mm, suitable for standard ceiling tiles and small rooms
  • DC fan motor, low sound level and high efficiency
  • Automatic display of faults
  • Built-in drain pump and EEV
  • Innovative 4 independent air flow control
  • Standard wired controller, Optional wireless controller

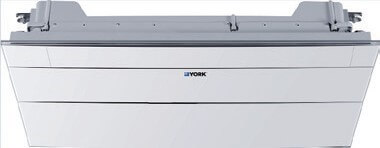

ONE-WAY CASSETTE

ONE-WAY CASSETTE

Cooling Capacity 1.5 – 3.6 kW

  • Hanging-style installation to save space;
  • DC fan motor, low sound level and high efficiency;
  • Automatic display of faults;
  • Built-in drain pump
  • The air conditioner is provided with the function of compensation for power supply. During operation, when the power supply fails emergently and resumes again, the air conditioner returns to the working condition before power failure, if provided with compensation function.
  • Standard wired controller, optional wireless controller, Function of central control (optional);
  • The operating methods and functions are same although the shapes of indoor units are different;
  • No need to reserve service port in addition. Remove the return air panel can maintain the units . More convenient and beautiful;
  • Slim design with the height is only 185mm
TWO-WAY CASSETTE

TWO-WAY CASSETTE

Cooling Capacity 2.8 – 5.6 kW

  • Stylish design - Seamless integration with any interior decoration
  • 280mm height main body
  • Quiet operation
  • Easy installation
  • Built-in water pump with max. 750mm head
  • Easy cleaning and maintenance - Flat type suction grille for easy cleaning
  • Wired controller as standard offer, wireless controller optional

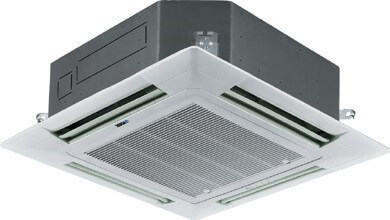

FOUR-WAY CASSETTE

FOUR-WAY CASSETTE

Cooling Capacity 2.8 – 14 kW

  • Quiet operation - New irregular helix design fan blade enabling the indoor unit running at lowest sound level
  • Standard built-in high head drain pump - Up to 750mm drain-head creating the ideal solution for perfect water drainage
  • Fresh air inlet except for 5.8/7.1/8.0kW - Pre-set fresh air inlet can introduce the outside fresh air into the room, greatly improve the indoor air quality, away from “air conditioner symptom”.
  • Branch outlet except for 2.8/3.6/4.5kW - 1 or 2 branch outlets for flexible and better air distribution
  • Advanced structure facilitating installation and maintenance - 90° rotation suction grille - Randomly installation direction
  • Real compact design for 2.8/3.6/4.5kW - The panel dimension is 700x700mm, and the unit dimension is 570x570mm, smaller footprint, easier for installation.
  • Wired controller as standard offer, wireless controller optional

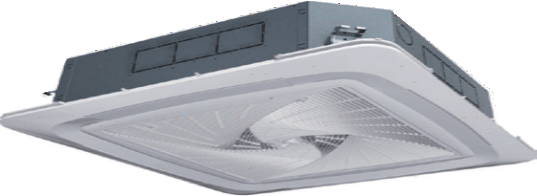

ROUND WAY CASSETTE

ROUND WAY CASSETTE

Cooling Capacity 2.2 – 16 kW

  • Automatic display of faults;
  • Built-in drain pump;
  • The air conditioner is provided with the function of compensation for power supply. During operation, when the power supply fails emergently and resumes again, the air conditioner returns to the working condition before power failure, if provided with compensation function.
  • Standard wired controller, optional wireless controller, Function of central control (optional);
  • The operating methods and functions are same although the shapes of indoor units are different;
  • Unique round-way air outlet , no blind spot .
  • Innovative 4 independent air flow control .
  • 6 adjustable louver position, 1296 air flow combination.
  • Move eye intelligent system, intelligent all around (optional).

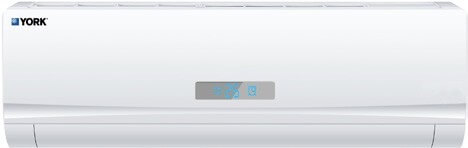

HIGH WALL

HIGH WALL

Cooling Capacity 2.2 – 9 kW

  • LED display
  • Built-in EEV
  • Stylish design
  • Super quiet operation
  • 3D air flow
  • Intelligent air direction control, cooling air goes up and heating air goes down
  • Vitamin C and ESF Filter Optional
  • Wireless controller as standard offer, wired controller is optional
  • Without built-in high head drain pump, not available for external drain pump
FLOOR CEILING

FLOOR CEILING

Cooling Capacity 2.2 – 14kW

  • Flexible and easy installation - Installed on the floor or in the ceiling - Installation space greatly decreased - Easy service and easy installation
  • Ultra thin body, only 199mm for 2.8~7.1kW
  • ESF Filter Optional
  • Large angle air supplying - 100° wide angle louvers and 70° wide angle blades design - Precise control of air flow - Equally distributed comfortable air flow to every corner of room
  • Without built-in drain pump, optional external drain pump
  • Wired controller as standard offer, wireless controller optional

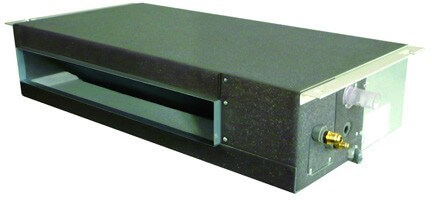

SLIM LOW STATIC PRESSURE DUCT

SLIM LOW STATIC PRESSURE DUCT

Cooling Capacity 2.2 – 7.1 kW

  • Ultra thin design saving installation space - Only 185mm height x 500mm depth
  • 0 or 30Pa selectable external static pressure
  • Knock down drain pan - Easy disassembly - Two side drainage available by changing drain pan direction
  • Built-in high head 750mm drain pump
  • Concealed installation perfectly matching with indoor room
  • Multi-mode installation - With or without air return duct - Bottom or rear air return
  • Wired controller as standard offer, wireless controller optional
MEDIUM STATIC PRESSURE DUCT

MEDIUM STATIC PRESSURE DUCT

Cooling Capacity 5.6 – 14 kW

  • Standard built-in high head drain pump - Up to 750mm head for 5.6~8.0kW
  • External drain pump optional for 9.0~14kW
  • Free setting of air discharge duct - Free selection of air flow outlets and installation position
  • Wired controller as standard offer, wireless controller optional
HIGH STATIC PRESSURE DUCT

HIGH STATIC PRESSURE DUCT

Cooling Capacity 11.2 – 28 kW

  • High external static pressure design - Max. external static pressure of 196Pa - 100 or 196Pa selectable static pressure
  • Without built-in drain pump, optional external drain pump
  • Free setting of air discharge duct - Free selection of air flow outlets and installation position
  • Wired controller as standard offer, wireless controller optional
FRESH AIR UNIT

FRESH AIR UNIT

Cooling Capacity 14 – 28 kW

  • Install with other indoor units together - Installed capacity must less than 30% of outdoor capacity
  • Wired controller as standard offer, wireless controller not optional
  • 100Pa static pressure
  • Operation ambient temperature -5~43°C
BUILD IN FLOOR STANDING

BUILD IN FLOOR STANDING

Cooling Capacity 2.2 – 7.1 kW

  • Automatic display of faults;
  • The air conditioner is provided with the function of compensation for power supply. During operation, when the power supply fails emergently and resumes again, the air conditioner returns to the working condition before power failure, if provided with compensation function.
  • Standard wired controller, optional wireless controller, Function of central control (optional);
  • Require very little installation space: only 0.26 m2 .
  • Good solution for installation beneath a Window.
  • Standard high efficiency filter
HEAT RECOVERY VENTILATOR

HEAT RECOVERY VENTILATOR

  • Efficient heat recovery air processing
  • Exchange the heat between supplied air and exhausted air, equalizing the outdoor air to indoor temperature
  • Decrease the interior heat load to save energy
  • Replaceable heat exchange media
